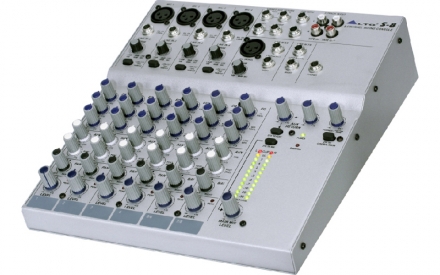

8-Channel 2-Bus Mixing Console
Angle

Angle

Front

Front

Back

Back



Find a Dealer

Share


Our international best-seller! The compact ▲LTO S-series mixers offer unequalled value in every aspect. They sound fantastic and feature excellent ergonomics for easy, accurate use in demanding situations. All the exceptional reliability that has helped establish ▲LTO's reputation for excellence around the World.

TECH INFORMATION

  • Balanced inputs for clean, hum - free performance
  • Extremely low noise preamps
  • 48 Volt Phantom Power
  • High headroom for wide dynamic range
  • 2 - Track inputs assignable to main mix, control room & headphone outputs
  • Sealed potentiometers
  • Built - in power transformer (Except S-6)
  • Inserts on mic channels
  • 4 mono inputs with gold plated XLR and balanced TRS jack
  • TRIM and 48V Phantom Power for mono / mic inputs
  • 2 stereo inputs with balanced TRS jacks
  • Peak LED in each channel
  • Very effective 3 - band EQ
  • 2 AUX sends: AUX 1 PRE - FADER for monitoring AUX 2 POST - FADER for effects send can be changed in PRE - FADER for monitoring
  • 2 Stereo AUX return with level and routing to AUX 1
  • 2 - track IN / OUT with discrete switch for routing to Control Room and / or to Main Mix
  • Discrete output level for Phones / Control Room
  • Balanced XLR & TRS jack output
  • Dimensions (WxDxH): 245 x 268 x 24 / 73mm (9.6" x 10.6" x 0.9/2.9")
  • Weight: 2.4kg (5.3 lb)
