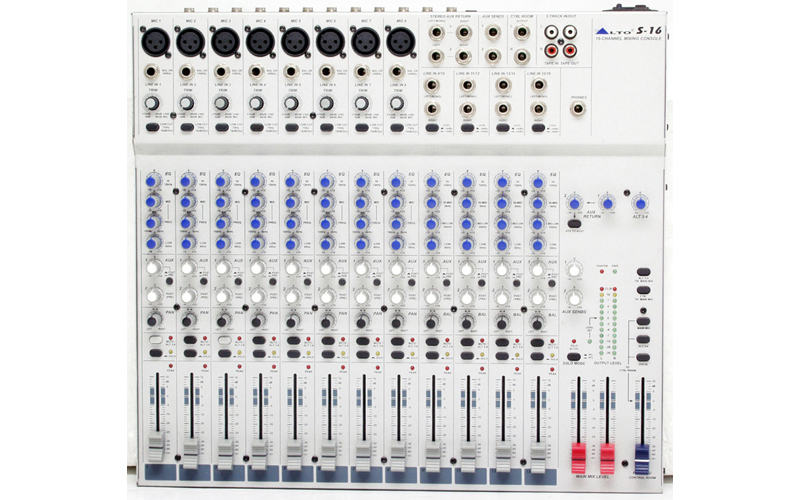

16-Channel 2 + 2-Bus Mixing Console
Angle

Angle

Front

Front

Back

Back



Find a Dealer

Share


Our international best-seller! The compact ▲LTO S-series mixers offer unequalled value in every aspect. They sound fantastic and feature excellent ergonomics for easy, accurate use in demanding situations. All the exceptional reliability that has helped establish ▲LTO's reputation for excellence around the World.

TECH INFORMATION

  • Balanced inputs for clean, hum - free performance
  • Extremely low noise preamps
  • 48 Volt Phantom Power
  • High headroom for wide dynamic range
  • 2 - Track inputs assignable to main mix, control room & headphone outputs
  • Sealed potentiometers
  • Built - in power transformer (Except S-6)
  • Inserts on mic channels
  • 8 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz - 18dB / Oct.
  • TRIM and 48V Phantom Power for mono / mic inputs
  • 4 stereo inputs with balanced TRS jack with level select switches
  • 3 - band EQ with sweepable MID on mono inputs
  • 4 - band fixed EQ on stereo inputs
  • 2 AUX sends: AUX 1 with PRE - / POST - FADER switch for monit oring / effect s AUX 2 POST - FADER for effects send can be changed in PRE - FADER for monitoring
  • Each input channel features MUTE / ALT3 - 4, SOLO switch, LEDs & OVERLOAD LED
  • 2 Stereo AUX return with level and routing to AUX 1
  • 2 - track IN / OUT with discrete switches for routing to Control Room and to Main Mix
  • Two different ways of SOLO PFL (Pre-fade listen) AFL (After-fade listen) for a better control over signal path
  • Matrix (MAIN MIX / 1-2 / 3-4) & discrete output level for Phones / Control Room
  • Balanced XLR & TRS jack output
  • Dimensions (WxDxH): 408 x 370 x 28 / 80mm (16.1" x 14.6" x 1.1/3.2")
  • Weight: 5.2kg (11.5 lb)
