16-Channel 2 + 2-Bus Powered Mixing Console

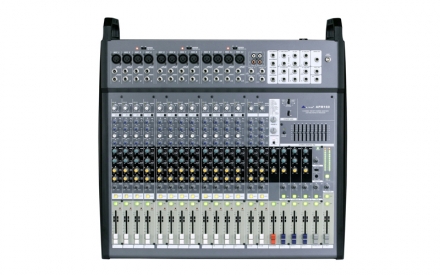

Front

Front



Find a Dealer

Share


4 years ago, ▲LTO shocked the market introducing the lightest power mixer ever made. Today we bring this concept to perfection with the APM models. Based on the same circuitry of our advanced D Series amplifiers, APM mixer includes a switch mode power supply and an advanced digital circuitry for the power amplifier section. The result is solid and clear lightweight power that is unprecedented for mixer of this size and weight. The output power available ranges from 1000 to 2500 watt for a total weight starting at 10kg only. Mixer section includes studio level microphone preamplifiers, master EQ and DSP unit.

TECH INFORMATION

  • Ultra - low noise discrete Mic Preamps with + 48V Phantom Power
  • Extremely high headroom offering more dynamic range
  • 60 mm high precision faders
  • Each input channel with Mute, SOLO function, Overload & signalpresent LEDs and low cut filters (except for stereo channel)
  • MAIN L - R signal assignment switchable
  • 4 AUX sends per channel: 2 PRE / POST faders switch - able for monitoring application and effects & sound processor input; 2 POST faders for internal digital DFX or as external send
  • 4 - band fixed EQ on stereo line channels
  • 12-Channel 2 + 2-Bus Powered Mixing Console
  • 3 - band EQ with swept mid on microphone channels
  • Channel inserts and direct outputs on each mono channel plus main mix insert for flexible connection of outboard equipment
  • 24 - bit DSP effect for 256 choices (16 presets 16 variations)
  • Stereo 9 - band graphic EQ
  • BNC socket for connecting lamp
  • Control room / phones matrix
  • 2 - TRACK IN assignable to main mix, control room / headphone outputs
  • Highly accurate 12 segment output level meters
  • 12 mic / line input channels and 2 stereo line inputs
  • 12 XLR + 1/4" TRS BALANCED Mono channel inputs (MIC/LINE)
  • 2 stereo channel inputs (1/4" TRS BALANCED)
  • 12 mono channel inserts
  • 4-Way Speakon + 6.3 Phone Jack for output connection
  • Main output: 2 x 1/4" TRS unbalanced
  • 2 stereo outputs for monitoring
  • Power Output: Stereo: 2 x 750W continuous EIAJ (4 ohm) Bridged: 1 x 1500W continuous EIAJ (8 ohm)
  • Power AMP Mode:
  • Switchable for STEREO L / R, AUX1 + MONO / MONO BRIDGE
  • Dimensions (WxDxH): 581 x 560 x 44 / 135mm (22.9" x 22" x 1.7/5.3")
  • Weight: 12.6kg (27.8 lb)
