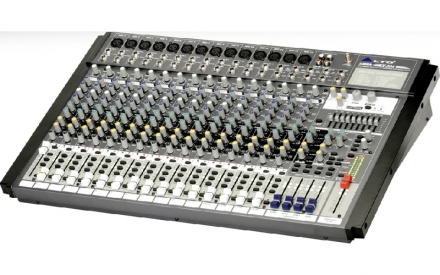

20 Input, 4 Bus Console With USB Interface
Angle

Angle



Find a Dealer

Share


▲LTO's mixers integrate the successful models LYNX-MIX124 USB, LYNX-MIX164 USB, LYNX-MIX204 USB
and LYNX-MIX244 USB, featuring two smart switches to make the USB port versatile in recording,  overdubbing and karaoke! Furthermore, model LYNX-MIX124 UM is more versatile, adding to smart switches USB port and MP3 player section, which is routable to inputs 9/10 thus making it perfect for karaoke, with its 4 Aux sends for stage monitors and effects.

TECH INFORMATION

  • 16Bit 32~48kHz ADC/DAC USB input and output with selectable track
  • Universal serial bus (USB) for easy connection with computer for music recording
  • Ultra-low noise discrete Mic Preamps with Å{48V Phantom Power
  • Extremely high headroom offering more dynamic range
  • 60mm high precision faders
  • Each input channel with Mute, SOLO function, Overload & signal present LEDs and low cut filters (except for stereo channel)
  • SUB 1 - 2, SUB 3 - 4 and MAIN L - R signal assignment switch
  • 4 AUX sends per channel: 2 PRE/POST faders switchable for monitoring application and effects & sound processor input; 2 POST faders for  internal digital DFX or as external send
  • 4-band fixed EQ on stereo line channels
  • 3-band EQ with swept mid on microphone channels
  • Channel inserts and direct outputs on each mono channel plus main mix insert for flexible connection of outboard equipment
  • 24-bit DSP effect for 256 choices (16 presets × 16 variations)
  • Stereo 9-band graphic EQ
  • BNC socket for connecting lamp
  • Control room/phones matrix
  • 2 - TRACK IN assignable to main mix, control room/headphone outputs
  • Highly accurate 12 segment output level meters
  • 12 mono inputs with gold plated XLR and balanced TRS jack with low cut filter @75Hz - 18dB/Oct. and insert
  • 4 Stereo inputs with balanced TRS jack
  • 13 & 14 CH have switch input & mic. Input
  • Dimensions (W×D×H): 626 × 400 × 38/115m / (24.7" × 15.8" × 1.5/4.5")
  • Net Weight: 8.2kg (18.1 lb)
