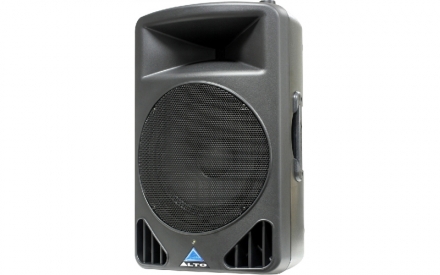

Angle
Back
TECH INFORMATION
- Power System Type: Bi-Amp with analogue processor
- Low Output Power: 70W (RMS) Class AB
- High Output Power: 50W (RMS) Class AB
- Maximum SPL @ 1m: 115.5dB SPL
- Frequency Response: 60Hz/20kHz Å{/Å|10dB
- Impedance: Low 8Ω-High 8Ω
- Protection Low-High: Limiter/Compressor plus PTC
- Crossover Frequency: Complex EQ processor
- Lower Frequency: 12"/318mm-2" voice coil
- High Frequency: 1" compression driver, 1" voice coil
- Horn Coverage (H×V) : 90°H × 45°V
- Input Sensitivity : line Å{4dB/1.23V
- Input Impedance : 30kΩ Balanced/15kΩ Unbalanced
- Connectors : Input with Jack/Link with XLR
- Plastic Reinforced Cabinet : Trapezoidal & Monitor shape
- Dimensions (H×W×D): 660 × 396 × 384mm (26" × 16" × 15.1")
- Weight: 18.4kg (40.6 lb)
