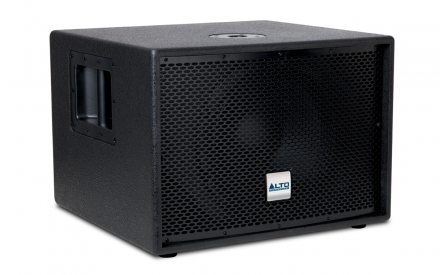

TSSUB12
Active 600 Watt 12" Subwoofer
  • 600 Watts Class D power
  • Powerful 12" woofer with 2.5" voice coil and double ventilation
  • Stereo Inputs: Mic/Line left channel, XLR right channel
  • Stereo XLR outputs: Left link, Right mono, internal crossover on through
  • Compact 18 mm birch cabinet with metal grille and handles
  • Adjustable level and polarity controls
  • Integrated hi-pass / low-pass filter
  • Clip Limiter with red LED
  • Ground Lift switch
Angle

Angle

Angle

Angle



Find a Dealer

Share


Compact, Lightweight Design With Thunderous Bass

Massive Sound - Professional Features
The Truesonic SUB12 is part of the family of Truesonic subwoofers that includes the SUB15 and SUB18. Don't let the fact that the SUB12 is the smallest sub in the Truesonic family fool you. The SUB12 comes factory-equipped 600 watts of power for truly remarkable performance. The frequency range and crossover of the Truesonic SUB18, SUB15 and SUB12 have been tuned to provide smooth, low-end sound production in the 37Hz-125Hz range for the SUB18, 42Hz-125Hz for the SUB15 and 47Hz-125Hz for the SUB12. Each subwoofer also offers stereo inputs, an internal active crossover, and are housed in rugged, compact, 18mm Birch plywood cabinets with durable metal recessed handles. When you're ready to extend the frequency range of your live performance reinforcement, Truesonic subwoofers are the effective, economical, and professional choice.

Truesonic Substance
Exacting details were planned and provided in the Truesonic SUB18, SUB15 and SUB12. From the modern digital power amp to the internal crossover and hand-picked drivers, they are class-leading subwoofers and worthy of the Truesonic name. As active subwoofer systems, The Truesonic SUB18, SUB15 and SUB12 offer a massive 18" LF long-excursion driver and large 15"  or 12" LF long-excursion driver respectively. The SUB12 comes equipped with 600 watts of pure Class D power with a 2.5" voice coil while the SUB15 and SUB18 are rated at a whopping 1200 watts peak and feature a 3" copper sandwich voice coil which means no matter which model you choose, you'll have plenty of low-end volume when you need it most.

TECH INFORMATION

Power System:  600W Peak / 300W RMS
Frequency Response: (-10dB)  47 Hz-125 Hz
Maximum SPL @ 1m (half-space):  120 dB continuous / 123 dB peak
Transducer Low:  12" Woofer, 2.5" voice coil, with double ventilation
Active Crossover:  HPF 80 Hz under analog processor
Input Connector:  L-R Input (Combo/XLR-F) / L-R Link (2-XLR-M) / L-R Output (2-XLR-M) Balanced (15 kΩ)
Input Level:  L-R Input Line 0dBu
External Control:  Volume Control/Phase Switch/HPF-80Hz By-Pass / Power on with Green LED/Clip Limiter with Red LED / Ground Lift
Enclosure Construction:  15 mm Plywood cabinet, glued and reinforced, resistant black paint; metal grille, rubber foot
Mounting:  One metal standard pole-mount plus one metal handle

Dimensions (WxLxH): 14.57in x 20.87in x 18.90in
Weight: 41.01 lb

Frequently Asked Questions [+]

The fan in my speaker is not spinning, is something wrong? Should the fans in both of my speakers operate exactly the same?
The fan operates as needed to control the internal temperature of the amplifier. There are component tolerances which cause small variations from unit to unit. It is normal for a unit at room temperature to have the fan spin slowly, or not at all, or to stop and start. It is normal for this to vary slightly from unit to unit. It has no impact on the performance of the product.
