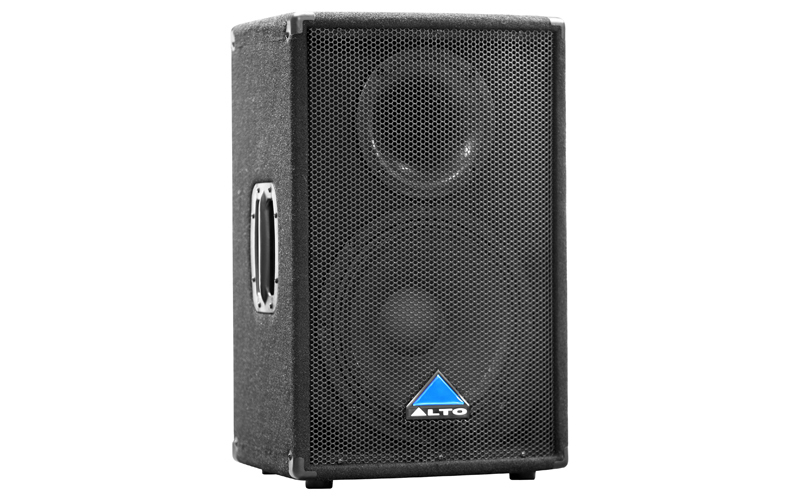

12" 2-way Passive Speaker Cabinet
Angle

Angle



Find a Dealer

Share


An ▲LTO Classic that is still highly demanded by Users worldwide. Amazing in their quality to price ratio the Elvis line ranges from a small 2 way-10 to the high SPL Elvis 15 XL with dual 15?woofer. All models are available both in active and passive configuration. The active Elvis include a microphone input, a three-band equalizer and a number of electronic protections to save the life of the transducers. The ELVIS 15.2XLA also include a 420-watt switch-mode amplifier that weights only about 1 Kg making the transportation of the enclosure quite easy. In fact, the total weight of this model is almost the same of the passive version!

TECH INFORMATION

  • Power System:  250W RMS/500W peak (AES Standard)
  • Frequency Response (Å|10dB) : 57Hz-18kHz
  • Sensitivity (1w @ 1mt): 96.5dB SPL
  • Impedance: 8Ω (nominal)
  • Maximum SPL @ 1m: 120dB continuous/123dB peak
  • Coverage (H×V) : 70° × 70° nominal
  • Transducer Low: 12" Woofer, 2" voice coil, with double ventilation
  • Transducer High: 1" Neodymium on Spherical Horn (Tractrix contour)
  • Passive Crossover : 2.25kHz at 12dB/oct, with HF protection
  • Enclosure Construction: Chipboard cabinet, glued and reinforced, covered in black carpet; black metal corner and rubber foot
  • Input Connectors : Two Parallel SPK NL-4 for INPUT/THRU
  • Mounting: One standard pole-mount plus one plastic handle
  • Dimensions (H×W×D): 603 × 394 × 355mm (23.7" × 15.5" × 14")
  • Weight: 16.9kg (37.3 lb)
