48-Points Patchbay (balanced mode)

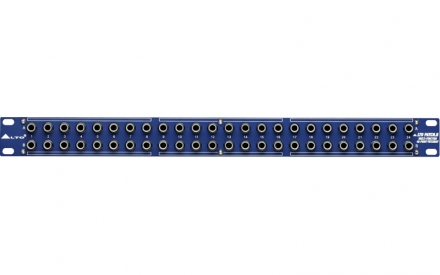

Front

Front

Back

Back



Find a Dealer

Share


TECH INFORMATION

  • 48 point 1 / 4" jack patch panel to connect all the devices of your studio
  • Three connection modes: Parallel, Half - Normalled and Open
  • Easily access to signal inputs and outputs of your equipment, as a central signal distribution
  • Simply to distinguish how the signal flows through the jack in the 3 modes
  • Each jack set available to choose each mode independently
  • Balanced Connections
  • Balanced sockects
  • Dimensions (WxDxH): 483 x 85 x 44mm (19" x 3.3" x 1.7")
  • Weight: 1.9kg (4.2 lb)
