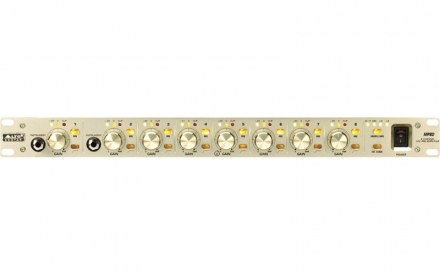

Front
The 8 channel mic/instrument preamplifier is part of the ▲LTO ESOTAR line of products which are built with no compromises on design or materials. ▲LTO ESOTAR processors are ideal for professional recording applications and sound installs. The first 2 channels of our MP8 include high gain mic/line input with an integrated DI box feature. Each channel provides an individual phantom power switch, phase and high pass control as well as insert points. MP8D comes equipped with 129dB of S/N ratio and 0.007% of THD. It also includes a sophisticated 24bit/192kHz digital output interface with external/internal clock and ADAT, AES/EBU and S/PDIF connectors.
TECH INFORMATION
- 2 channel Mic/Line Input jacks, 6 channel Mic input capability
- Serves as DI box
- Individual Phantom Power Switch
- 8 channel ADAT and with AES/EBU or S/PDIF output
- Switch control with build-in light
- 8 channels for MIC only also include individual 48 volt phantom power switch and high pass filter
- Includes 2 channels with Hi-Z input for line level instrument
- TRS jack insert
- Dimensions (W×D×H): 483 × 288 × 44mm (19" × 11.3" × 1.7")
- Weight: 4.8kg (10.6 lb)
