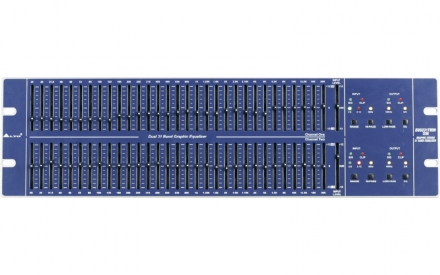

Front
Back
TECH INFORMATION
- Type: 2 x 31, 1 / 3 octave, ISO spacing
- Slider Type: 60mm with center detect
- Power Consumption: 18 watts
- Dimensions (WxDxH): 483 x 187 x 177.6mm (19" x 7.4" x 7.0")
- Weight: 6.0kg (13.2 lb)
- Control range 6dB or 12dB selectable
- Bypass function
- Switchable Hi - pass and Low - pass filters.
- Balanced XLR, 1 / 4" TRS and RCA input and output connectors
- Signal clip LED
- Ground "LIFT" switch to disconnect signal ground from chassis ground
- Line voltage selectable (115V / 230V)
- Control Range: +/-6dB or 12dB selectable
- Inputs and Outputs: XLR, 1 / 4" TRS and RCA jack
- Inputs Impedance: 20K ohm (bal) 15K ohm (unbal)
- Outputs Impedance: < 600 ohm
- High Pass Filter: 40Hz (12dB/oct)
- Low Pass Filter: 16kHz (12dB/oct)
- Max. Input Level: +18dBV
- Max. Output Level: +16dBV
- THD%: 0.02% (at 1kHz, all slider at center)
- Frequency Response: 20Hz to 50kHz, 3dB (all slider at center)
- S / N Ratio: 117dB
- Power Supply: AC 100V - 120V, 60Hz / AC 200V - 240V, 50Hz
- Power Consumption: 15 watts (max)
