MIXPACK
Portable Powered PA System
  • 600 Watt portable sub/satellite PA system
  • 12" subwoofer plus two satellites with 2 x 6.5" and 1 x 1.0" speakers
  • 6-channel mixer with 3-band per channel EQ
  • XLR, Line, and RCA inputs
  • 24-bit Alesis DSP with 16 total effects
  • Lightweight, one-piece design for convenient transport; speaker cables included

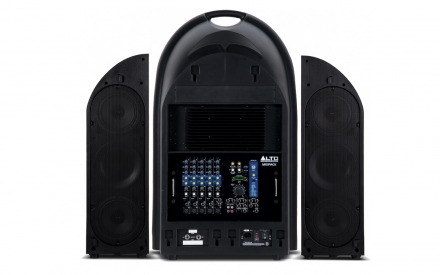

Front

Front

Back

Back



Find a Dealer

Share


The complete mixing, clean power, digital effects, and EQ on-the-go package

All-In-One
Open the Mixpack and discover a full-featured, on-the-go PA system. In addition to the 6-channel mixer, your Mixpack contains a 12" subwoofer and two satellite speaker cabinets, all driven by 600 Watts of pure Class AB power.

Versatility and Mobility
Mixpack features a six-channel mixer. Inputs include XLR, line, and RCA jacks so you can connect any audio source, from musical instruments to microphones to an iPod. Each channel features a 3-band EQ for shaping the tone. In addition, sixteen onboard Alesis-driven effects add a professional finishing touch to your sound. And no matter where your music takes you, Mixpack sets up in minutes—without sacrificing quality or power.

Pump it Up
Living inside the Mixpack are 600 Watts of pure Class AB power. The 12" subwoofer produces a smooth rich bass. Two satellite cabinets deliver clean mids and highs. Each cabinet is home to a pair of 6.5" drivers and a 1" tweeter. We’ve even included stands, so you can place the sound where you need it most.



TECH INFORMATION

Type: 3-Way Powered System Bi-Amp plus passive crossover into Satellite
Low Output Power: 150 W RMS Class AB
MID-HIGH-Output Power: 75 W + 75 W RMS Class AB
Peak Power Rating: 600 Watts Peak
Maximum SPL @ 1m 116.5dB Continuous:  - 119.5 dB Peak (calculated)
Frequency Response: 55 Hz - 20 kHz @ -10 dB
Impedance: Low-Mid / High Low 8 ohm - Mid / high 8 Ohm
Crossover Frequencies: Active 125 Hz at 12 dB / Oct - Passive 3000 Hz at 12 dB / Oct with Electronic Dynamic Protections
Amplifier Protections: Low-Mid / High Soft start - Short Circuit - DC output voltage - Thermal Protection - Subsonic Filter at 30Hz - 24dB / Oct - Limiter / Compressor
Low Frequency Device: 12" / 318 mm - 2" Voice Coil
Mid Frequency Device: 4×6.5" / 165 mm - 1.5" Voice Coil
High Frequency Device: 2 × 1" Compression Driver - 1" Voice Coil
Horn Coverage: H° × V° 80°H × 80°V
Enclosure: Plastic Reinforced Cabinet Polypropylene

MIXER Section
Microphone Input: Electronically balanced discrete input configuration
Frequency Response: 10Hz to 55KHz ＋/－3dB
Distortion: (THD&N) 0.04% at +4dBu 1KHz
Gain: 35 dB
SNR: (Signal to noise ratio) ＞94 dB
Line input: Electronically balanced
Frequency Response: 10 Hz to 55 kHz ＋/－ 3 dB
Distortion: (THD&N) 0.04% at +4 dBu 1 kHz
Gain: 15 dB

Stereo Input / Output
Line input: Unbalanced
Frequency Response: 10 Hz to 55 kHz ＋/－3 dB
Distortion: (THD&N) 0.04% at +4 dBu 1 kHz

Impedances
Microphone Input: 1.4 kOhm
Channel insert return: 2.5 kOhm
All other inputs: 10 kOhm or greater
Tape out: 1 kOhm
All other outputs: 120 Ohm

Equalization
Hi shelving: ±15 dB @ 12 kHz
Mid bell: ±15 dB @ 2.5 kHz
Low shelving: ±15 dB @ 80 Hz

DSP section
A/D and D/A converters: 24-bit
DSP resolution: 24-bit
Type of effects: Reverbs, Stereo, Delay, Chorus, Reverb + Delay and Reverb + Chorus combinations
Presets: 16

Controls & Monitoring
16-position preset selector
Clip LED
Mute Switch with LED indicator

Main Mix Section
Noise (Bus noise)
Fader 0 dB channels muted: -89 dBu
Fader 0 dB all input channels assigned and set to unity gain: -85 dBu
Max output: 27dBu balanced
Controls: 22 dBu balanced 1/4" jacks
AUX Sends: Max out 22 dBu
Power Supply: AC - 220 / 240 V or AC - 100 / 120 Volt, with Switching Power Mode.

Dimensions (WxLxH): 1060mm x 700mm x 700mm
Weight: 94.8 lb
